Home / High-power 1818 LED Module  / Waterproof 1818 LED Module 1-LED 160°

Ref.: BL-LMN1818W01-LENS

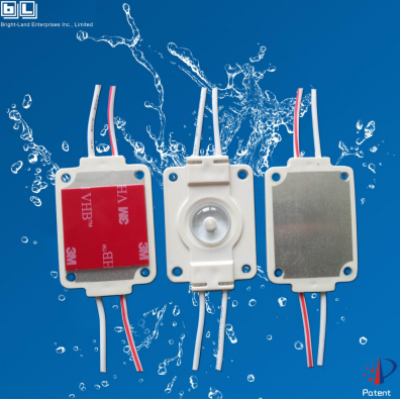

Desc.: 1818 LED with aluminum PCB + Screw hole + ABS casing + LENS 160° + 3M adhesive tape

Product Details:

 Power (W)  2W
 LED Quantity  1LEDs
 Dimension (mm)  52X35X7mm   (excluding the height of LENS)
 IP rating  IP67
 Color Temperature (K)  3000K / 4000K / 5000K / 6500K
 Lumens output (LM)  175LM
 Luminous efficacy (LM/W)  >80LM/W
 Angle (°)  160°
 Type of LED  High-power 1818 SMD
 CRI  >80
 PCB  Aluminum
 Casing  ABS
 Voltage (V)  DC 12V
 Life span (hours)  50000
 Working temperature (°C)  -40°C - 50°C
 Warranty  5 years


    Specification
