| Home / High-power Sideview Edge Light 2020 LED Module / Waterproof 2020 LED Module 1-LED 20°70° |
| |
Ref.: BL-LMN2020W01-SL-V1

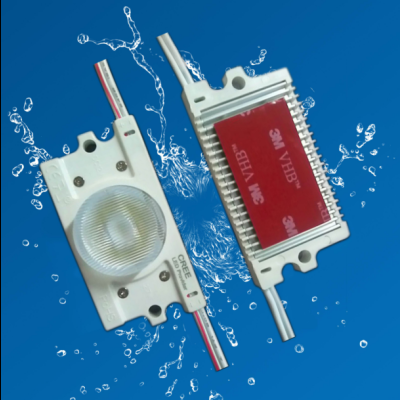

Desc.: 2020 LED with aluminum PCB + Screw hole + ABS casing + LENS 20°70° + 3M adhesive tape + Aluminum cooling part |
| |
Product Details: |
 |
|
| Power (W) |
2.7W |
| LED Quantity |
1LEDs |
| Dimension (mm) |
70X35X20.7mm (excluding the height of LENS) |
| IP rating |
IP67 |
| Color Temperature (K) |
3000K / 4000K / 5000K / 6500K |
| Lumens output (LM) |
230-240LM |
| Luminous efficacy (LM/W) |
>85LM/W |
| Angle (°) |
20°70° |
| Type of LED |
High-power 2020 SMD |
| CRI |
>80 |
| PCB |
Aluminum |
| Casing |
ABS |
| Voltage (V) |
DC 12V |
| Life span (hours) |
50000 |
| Working temperature (°C) |
-40°C - 50°C |
| Warranty |
5 years |
|
| |
|
| |
|
|
| |
|
Specification  |
