Home / High-power Sideview Edge Light 1818 LED Module / Waterproof 1818 LED Module 1-LED 10°60° |
|

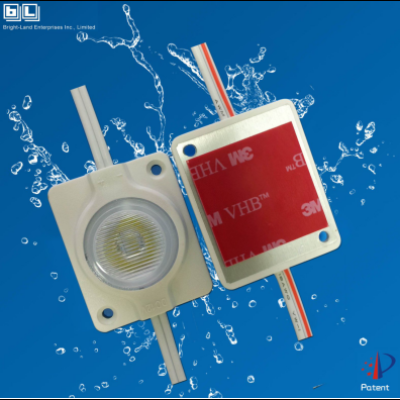

Ref.: BL-LMN1818W01-SL
Desc.: 1818 LED with aluminum PCB + Screw hole + ABS casing + LENS 10°60° + 3M adhesive tape |
|
Product Details: |
 |
|
Power (W) |
2W |
LED Quantity |
1LEDs |
Dimension (mm) |
43X35X13.5mm (excluding the height of LENS) |
IP rating |
IP67 |
Color Temperature (K) |
3000K / 4000K / 5000K / 6500K |
Lumens output (LM) |
175LM |
Luminous efficacy (LM/W) |
>80LM/W |
Angle (°) |
10°60° |
Type of LED |
High-power 1818 SMD |
CRI |
>80 |
PCB |
Aluminum |
Casing |
ABS |
Voltage (V) |
DC 12V |
Life span (hours) |
50000 |
Working temperature (°C) |
-40°C - 50°C |
Warranty |
5 years |
|
|
|
|
|
|
|
|
Specification  |
