Home / 5630 LED Module  / Waterproof Samsung 5630 LED Module 2-LED 160°

Ref.: BL-LMN5630W02-LENS-R

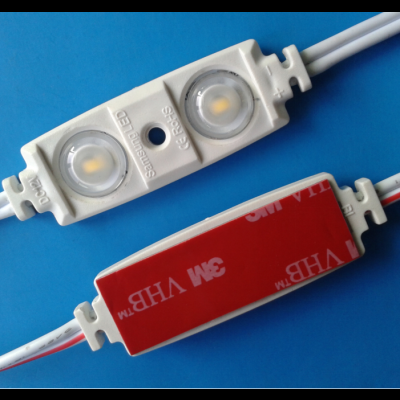

Desc.: Samsung LED Module with aluminum PCB + screw hole + ABS casing + Lens + 3M adhesive tape

Product Details:

 Power (W)  1.2W
 LED Quantity  2LEDs
 Dimension (mm)  57X18X5mm  (excluding the height of LENS)
 IP rating  IP67
 Color Temperature (K)  2700K / 3000K / 4000K / 5000K / 6500K
 Lumens output (LM)  70-76LM
 Luminous efficacy (LM/W)  >58LM/W
 Angle (°)  160°
 Type of LED  SAMSUNG 5630 PLUS LED
 CRI  >80
 PCB  Aluminum
 Casing  ABS
 Voltage (V)  DC 12V
 Life span (hours)  50000
 Working temperature (°C)  -40°C - 50°C
 Warranty  5 years
                                       LED powered by

    Specification
