Home / 5630 LED Module / Waterproof Samsung 5630 LED Module 5-LED 120
°
Ref.: BL-LMN5630W05-LENS

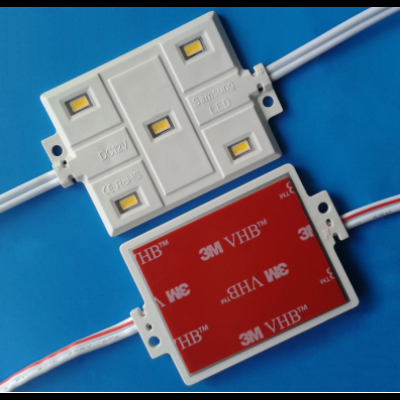

Desc.: Samsung LED Module with aluminum PCB + screw hole + ABS casing + Lens + 3M adhesive tape
Product Details
:
Power (W)
2.1W
LED Quantity
5LEDs
Dimension (mm)
64.5X44X4mm
IP rating
IP67
Color Temperature (K)
2700K / 3000K / 4000K / 5000K / 6500K
Lumens output (LM)
165-190LM
Luminous efficacy (LM/W)
>78LM/W
Angle (°)
120°
Type of LED
SAMSUNG 5630 PLUS LED
CRI
>80
PCB
Aluminum
Casing
ABS
Voltage (V)
DC 12V
Life span (hours)
50000
Working temperature (°C)
-40°C - 50°C
Warranty
5 years
LED powered by
Specification
