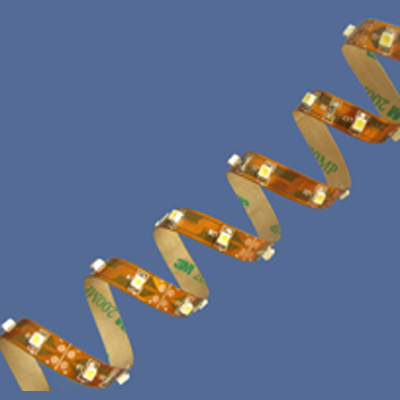

LED Strip   /  SMD LED Strip   /   Flexible LED Strip with SMD 3528   DC 12V


This kind of Flex Stripe is a perfect solution for edge-lighting of transparent or diffused materials, path and contour marking, dynamic colour applications.

Features:
1) Can be cut every 3 LEDs along the cut-mark. After cutting, the remaining parts can be used separately or rejoined;
2) Made of printed circuit board with self-adhesive tape;
3) Available in various color: red, green, blue, white, yellow,
4) CRI >80
5) Packed in 5 meters per reel
6) PCB Oil: Yellow oil or White oil optional


Product Details:

Each meter of stripe has 20pcs or 30pcs or 60pcs or 96pcs SMD LEDs, arranged in a single line. The available colours are: red, green, blue, white, yellow. The
optical and electrical characteristics for each colour are given in the following table:



a)  8mm Width    20LEDs/meter  (BL-LR3528C10 version -- 2LEDs per cutting)      IP20:
Code No.LEDs/m Color Wavelength Beam Angle Luminus Flux
(lm/m) 		Voltage Watt / Meter CRI (Ra) Cuttable (mm)
BL-LR3528R10
20
Red
625nm
120°
--
12V DC
2.4W
80+
100
BL-LR3528G10
20
Green
515nm
120°
--
12V DC
2.4W
80+
100
BL-LR3528B10
20
Blue
473nm
120°
--
12V DC
2.4W
80+
100
BL-LR3528Y10
20
Yellow
590nm
120°
--
12V DC
2.4W
80+
100
BL-LR3528W10
20
Cold White
6500K
120°
140lm
12V DC
2.4W
80+
100
BL-LR3528W10-NW
20
Neutral White
4000K
120°
140lm
12V DC
2.4W
80+
100
BL-LR3528W10-WW
20
Warm White
3000K
120°
140lm
12V DC
2.4W
80+
100


b)  8mm Width    30LEDs/meter  (BL-LR3528C15 version -- 3LEDs per cutting)      IP20:
Code No.LEDs/m Color Wavelength Beam Angle Luminus Flux
(lm/m) 		Voltage Watt / Meter CRI (Ra) Cuttable (mm)
BL-LR3528R15
30
Red
625nm
120°
--
12V DC
2.4W
80+
100
BL-LR3528G15
30
Green
515nm
120°
--
12V DC
2.4W
80+
100
BL-LR3528B15
30
Blue
473nm
120°
--
12V DC
2.4W
80+
100
BL-LR3528Y15
30
Yellow
590nm
120°
--
12V DC
2.4W
80+
100
BL-LR3528W15
30
Cold White
6500K
120°
210lm
12V DC
2.4W
80+
100
BL-LR3528W15-NW
30
Neutral White
4000K
120°
210lm
12V DC
2.4W
80+
100
BL-LR3528W15-WW
30
Warm White
3000K
120°
210lm
12V DC
2.4W
80+
100


c)  8mm Width    60LEDs/meter  (BL-LR3528C30 version -- 3LEDs per cutting)      IP20:
Code No.LEDs/m Color Wavelength Beam Angle Luminus Flux
(lm/m) 		Voltage Watt / Meter CRI (Ra) Cuttable (mm)
BL-LR3528R30
60
Red
625nm
120°
--
12V DC
4.8W
80+
50
BL-LR3528G30
60
Green
515nm
120°
--
12V DC
4.8W
80+
50
BL-LR3528B30
60
Blue
473nm
120°
--
12V DC
4.8W
80+
50
BL-LR3528Y30
60
Yellow
590nm
120°
--
12V DC
4.8W
80+
50
BL-LR3528W30
60
Cold White
6500K
120°
420lm
12V DC
4.8W
80+
50
BL-LR3528W30-NW
60
Neutral White
4000K
120°
420lm
12V DC
4.8W
80+
50
BL-LR3528W30-WW
60
Warm White
3000K
120°
420lm
12V DC
4.8W
80+
50


d)  8mm Width    96LEDs/meter  (BL-LR3528C48 version -- 3LEDs per cutting)      IP20:
Code No.LEDs/m Color Wavelength Beam Angle Luminus Flux
(lm/m) 		Voltage Watt / Meter CRI (Ra) Cuttable (mm)
BL-LR3528R48
96
Red
625nm
120°
--
12V DC
7.68W
80+
31.25
BL-LR3528G48
96
Green
515nm
120°
--
12V DC
7.68W
80+
31.25
BL-LR3528B48
96
Blue
473nm
120°
--
12V DC
7.68W
80+
31.25
BL-LR3528Y48
96
Yellow
590nm
120°
--
12V DC
7.68W
80+
31.25
BL-LR3528W48
96
Cold White
6500K
120°
672lm
12V DC
7.68W
80+
31.25
BL-LR3528W48-NW
96
Neutral White
4000K
120°
672lm
12V DC
7.68W
80+
31.25
BL-LR3528W48-WW
96
Warm White
3000K
120°
672lm
12V DC
7.68W
80+
31.25


e)  8mm Width    120LEDs/meter  (BL-LR3528C60 version -- 3LEDs per cutting)      IP20:
Code No.LEDs/m Color Wavelength Beam Angle Luminus Flux
(lm/m) 		Voltage Watt / Meter CRI (Ra) Cuttable (mm)
BL-LR3528R60
120
Red
625nm
120°
--
12V DC
9.6W
80+
25
BL-LR3528G60
120
Green
515nm
120°
--
12V DC
9.6W
80+
25
BL-LR3528B60
120
Blue
473nm
120°
--
12V DC
9.6W
80+
25
BL-LR3528Y60
120
Yellow
590nm
120°
--
12V DC
9.6W
80+
25
BL-LR3528W60
120
Cold White
6500K
120°
672lm
12V DC
9.6W
80+
25
BL-LR3528W60-NW
120
Neutral White
4000K
120°
672lm
12V DC
9.6W
80+
25
BL-LR3528W60-WW
120
Warm White
3000K
120°
672lm
12V DC
9.6W
80+
25
