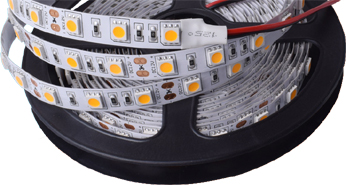

This kind of Flex Stripe is a perfect solution for edge-lighting of transparent or diffused materials, path and contour marking, dynamic colour applications.

Features:
1) Can be cut every 3 LEDs along the cut-mark. After cutting, the remaining parts can be used separately or rejoined;
2) Made of printed circuit board with self-adhesive tape;
3) Available in various color: RGB tri-color,  Single color (red, green, blue, white, yellow)
4) Packed in 5 meters per reel


Product Details:

Each meter of stripe has 30pcs or 60pcs SMD LEDs, arranged in a single line. The available colours are: RGB tri-color, Single color (red, green, blue, white, yellow). The
optical and electrical characteristics for each colour are given in the following table:



a) 10mm Width   30LEDs/ meter (BL-LR5060C-50-15 version -- 3LEDs per cutting)      IP20:
Code No.LEDs/m Color Wavelength Beam Angle Luminus Flux
(lm/m) 		Voltage Watt / Meter CRI (Ra) Cuttable (mm)
BL-LR5060R-50-15
30
Red
625nm
120°
--
12V DC
7.2W
80+
100
BL-LR5060G-50-15
30
Green
515nm
120°
--
12V DC
7.2W
80+
100
BL-LR5060B-50-15
30
Blue
473nm
120°
--
12V DC
7.2W
80+
100
BL-LR5060Y-50-15
30
Yellow
590nm
120°
--
12V DC
7.2W
80+
100
BL-LR5060W-50-15
30
Cold White
6500K
120°
840lm
12V DC
7.2W
80+
100
BL-LR5060W-50-15-NW
30
Neutral White
4000K
120°
840lm
12V DC
7.2W
80+
100
BL-LR5060W-50-15-WW
30
Warm White
3000K
120°
840lm
12V DC
7.2W
80+
100
BL-LR5060RGB-50-15
30
RGB Full color
--
120°
--
12V DC
7.2W
80+
100


b) 10mm Width   60LEDs/ meter (BL-LR5060C-50-30 version -- 3LEDs per cutting)      IP20:
Code No.LEDs/m Color Wavelength Beam Angle Luminus Flux
(lm/m) 		Voltage Watt / Meter CRI (Ra) Cuttable (mm)
BL-LR5060R-50-30
60
Red
625nm
120°
--
12V DC
14.4W
80+
50
BL-LR5060G-50-30
60
Green
515nm
120°
--
12V DC
14.4W
80+
50
BL-LR5060B-50-30
60
Blue
473nm
120°
--
12V DC
14.4W
80+
50
BL-LR5060Y-50-30
60
Yellow
590nm
120°
--
12V DC
14.4W
80+
50
BL-LR5060W-50-30
60
Cold White
6500K
120°
1680lm
12V DC
14.4W
80+
50
BL-LR5060W-50-30-NW
60
Neutral White
4000K
120°
1680lm
12V DC
14.4W
80+
50
BL-LR5060W-50-30-WW
60
Warm White
3000K
120°
1680lm
12V DC
14.4W
80+
50
BL-LR5060RGB-50-30
60
RGB Full color
--
120°
--
12V DC
14.4W
80+
50
