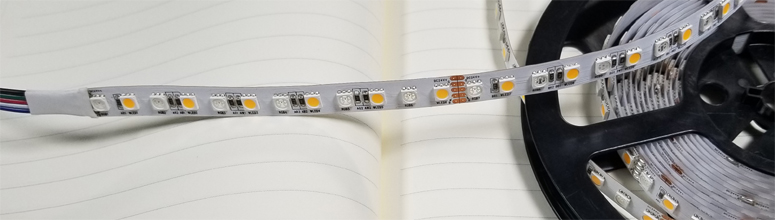

This kind of Flex Stripe is a perfect solution for edge-lighting of transparent or diffused materials, path and contour marking, dynamic colour applications.

Features:
1) Can be cut every 12pcs LEDs along the cut-mark. After cutting, the remaining parts can be used separately or rejoined;
2) Made of printed circuit board with self-adhesive tape;
3) Each unit includes 6pcs RGB tri-color LED and 6pcs White LED;
4) Packed in 5 meters per reel


Product Details:

Each meter of stripe LEDs, arranged in a single line.
The optical and electrical characteristics for each colour are given in the following table:



12mm Width   48LEDs/ meter (BL-LR5060RGBW   version -- 12LEDs per cutting)      IP20:
Code No.LEDs/m Color Wavelength Beam Angle Luminus Flux
(lm/m) 		Voltage Watt / Meter CRI (Ra)
for White 		Cuttable (mm)
BL-LR5060RGB12W12-24V-
 48pcs RGB tri-color LED
+ 48pcs White LED		 RGB + W
R: 625nm
G: 515nm
B: 473nm
White: 2700K
120°
--
24V DC
80+
250
