Home / LED Strip   / Flexible Strip with SMD 5060 RGBW LED (4Chips-In-One)

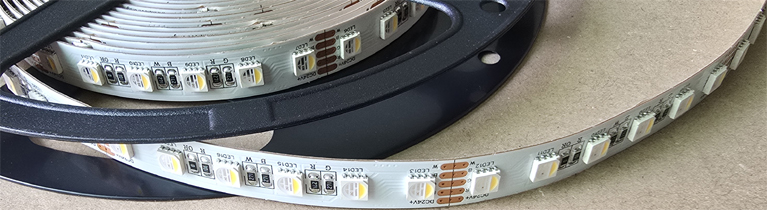

This kind of Flex Stripe is a perfect solution for edge-lighting of transparent or diffused materials, path and contour marking, dynamic colour applications.

Features:
1) Can be cut every 6pcs LEDs along the cut-mark. After cutting, the remaining parts can be used separately or rejoined;
2) Made of printed circuit board with self-adhesive tape;
3) Available in RGBW 4 Chips inside
4) Packed in 5 meters per reel


Product Details:

Each meter of stripe has 48pcs, 60pcs or 84pcs SMD LEDs, arranged in a single line.
The optical and electrical characteristics for each colour are given in the following table:



a) 12mm Width   48LEDs/ meter (BL-LR5060RGBW24 version -- 6LEDs per cutting)      IP20:
Code No.LEDs/m Color Wavelength Beam Angle Luminus Flux
(lm/m) 		Voltage Watt / Meter CRI (Ra)
for White 		Cuttable (mm)
BL-LR5060RGBW24-57
48
RGB + 5700K
R: 625nm
G: 515nm
B: 473nm
White: 5700K
120°
--
24V DC
16W
90+
125
BL-LR5060RGBW24-27
48
RGB + 2700K
R: 625nm
G: 515nm
B: 473nm
White: 2700K
120°
--
24V DC
16W
90+
125


b) 12mm Width   60LEDs/ meter (BL-LR5060RGBW30 version -- 6LEDs per cutting)      IP20:
Code No.LEDs/m Color Wavelength Beam Angle Luminus Flux
(lm/m) 		Voltage Watt / Meter CRI (Ra)
for White 		Cuttable (mm)
BL-LR5060RGBW30-57
60
RGB + 5700K
R: 625nm
G: 515nm
B: 473nm
White: 5700K
120°
--
24V DC
24W
90+
100
BL-LR5060RGBW30-27
60
RGB + 2700K
R: 625nm
G: 515nm
B: 473nm
White: 2700K
120°
--
24V DC
24W
90+
100


c) 12mm Width   84LEDs/ meter (BL-LR5060RGBW42 version -- 6LEDs per cutting)      IP20:
Code No.LEDs/m Color Wavelength Beam Angle Luminus Flux
(lm/m) 		Voltage Watt / Meter CRI (Ra)
for White 		Cuttable (mm)
BL-LR5060RGBW42-57
84
RGB + 5700K
R: 625nm
G: 515nm
B: 473nm
White: 5700K
120°
--
24V DC
27W
90+
71.42
BL-LR5060RGBW42-27
84
RGB + 2700K
R: 625nm
G: 515nm
B: 473nm
White: 2700K
120°
--
24V DC
27W
90+
71.42
